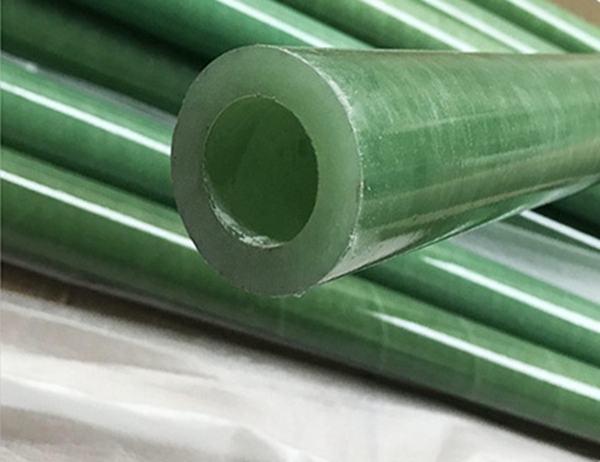

High temperature resistant epoxy resin fiberglass winding pipe

The winding tubes (large-diameter ones also called pipes) produced by Taporel are divided into glass fiber tubes and glass cloth tubes (black) according to the form of glass fiber used. Resin compound is generally a high temperature resistant epoxy resin curing agent. When we communicate with customers in the early stage, we must first understand the purpose and working environment of the winding tube that the customer uses, and secondly, the customer proposes the basic performance indicators of the winding tube required. Based on the above two points, we will provide customers with several options.

产品详情


According to the customer's requirements for the mechanical properties of the winding tube (tensile strength, bending strength, torsional strength, etc.), the layer structure is designed based on the overall stress state of the product made of the winding tube. Use glass fiber or glass cloth as reinforcement material, or use it crosswise, choose the winding angle, etc. Ensure overall product reliability.

[Application fields of epoxy fiberglass wound tube] It is widely used in high-voltage electrical appliances such as oil-immersed transformers, H-class dry-type transformers, railway locomotive transformers, tap-changers, reactors, arresters, SF-6 transformers, experimental equipment, etc. The main insulation of the high voltage product has the advantages of high voltage resistance, small dielectric loss, low partial discharge, high mechanical strength, no deformation, low water absorption, and chemical corrosion resistance.
