BWFRP fiber reinforced pipe fittings

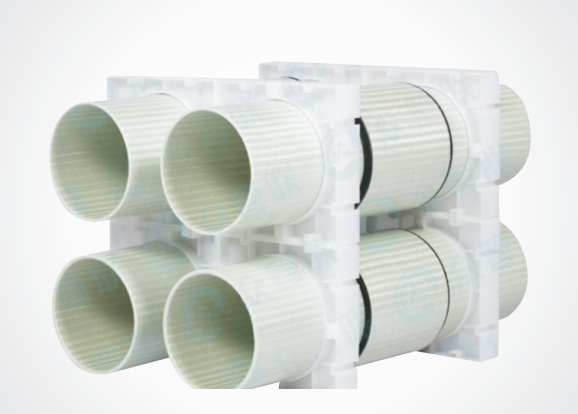

Taporel's BWFRP cable protection tube (pipe) has a unique production process with high technical content.  It has a three-layer structure through an online complete winding pultrude molding process. The inner and outer layers are both cross-braided layers, and the middle layer is annular and longitudinal performance. The multi-dimensional braided structure makes the inside and outside of the pipe texture composite reinforced layer. As the supporting pipe skeleton, the fiber direction determines the product clear and uniform, and every place is stressed evenly against pressure, which greatly improves the ring stiffness and toughness of the pipe and has better impactresistance.

Different from the traditional pipe hot melt forming, BWFRP pipe is high temperature curing forming, so as to have better high and low temperature resistance.

In addition, different from the traditional fixed-length winding process, BWFRP pipe is formed by the winding pultrusion continuous process, which makes the product quality more stable and the service life longer, and the market economic value greater.

Special Note:For the new technology BWFRP fiber reinforced resin-based online braided pultrusion winding tubes, we can choose reinforcing fiber (glass fiber/basalt fiber/carbon fiber) and resin base (epoxy resin, unsaturated resin, vinyl) according to the workingconditions of customers.
